Kilogram-scale preparation for each batch.

Platinum loading supported on carbon is adjustable ranging from 1~70%.

Platinum nanoparticles feature with high uniformity with the standard difference of ±0.2 nm.

The unique lattice compressive stress enhances the activity and stability.

PEM fuel cells

PEM Water Electrolysis

Platinum-Carbon Catalyst

Catalysts	Specifications	Compositions	Average Particle Size(nm)	Electrochemical Active Area (ECSA m²/g)	Mass Activity(MA, mA/mg)	Specific Surface Area(m²/g)

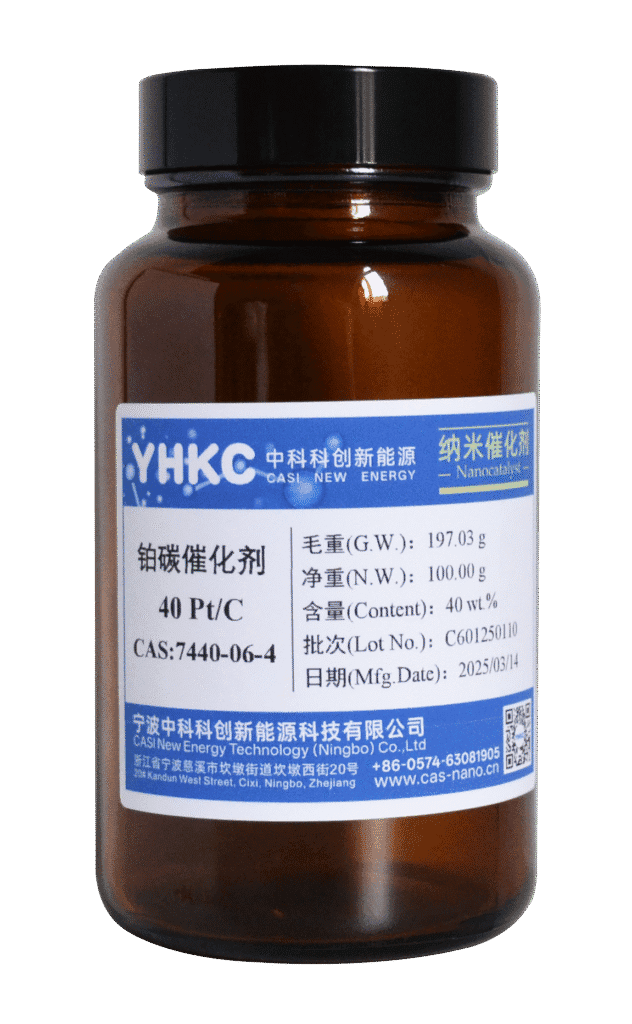

Pt/C	HiCaP40	40wt.%Pt,60wt.%C	2.8	95	130	140

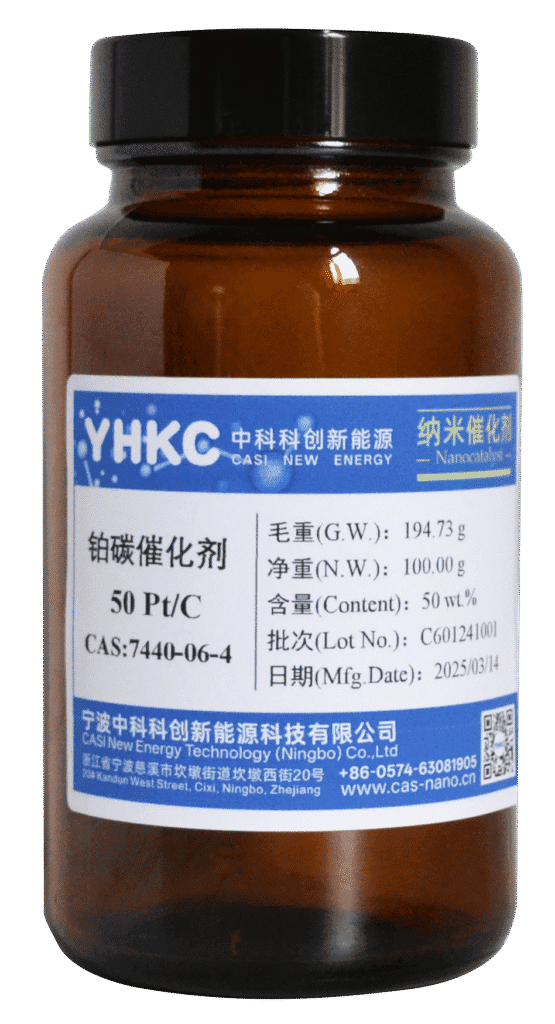

	HiCaP50	50wt.%Pt,50wt.%C	3.3	85	130	110

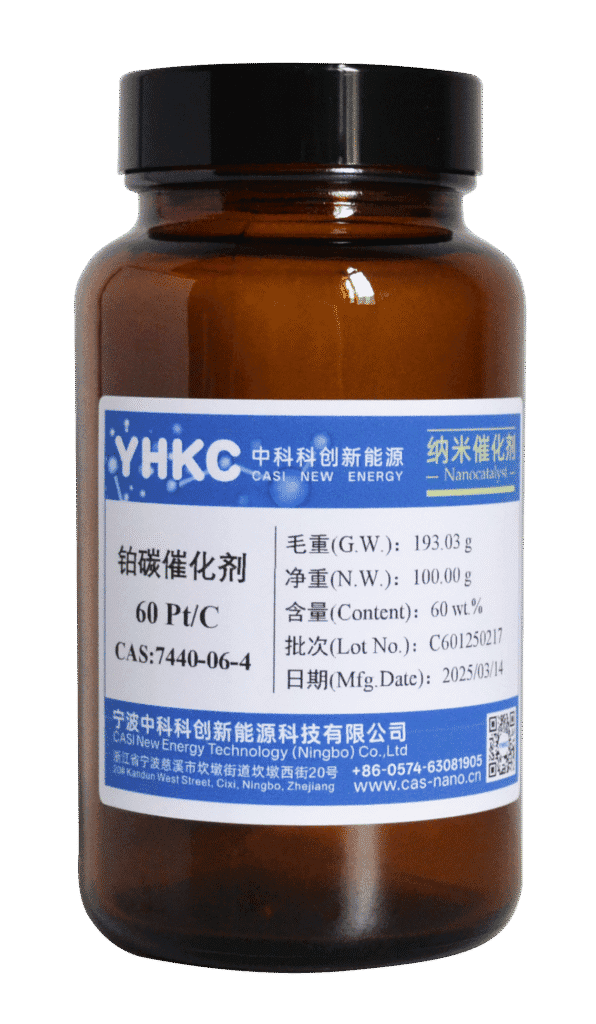

	HiCaP60	60wt.%Pt,40wt.%C	3.3	90	135	296

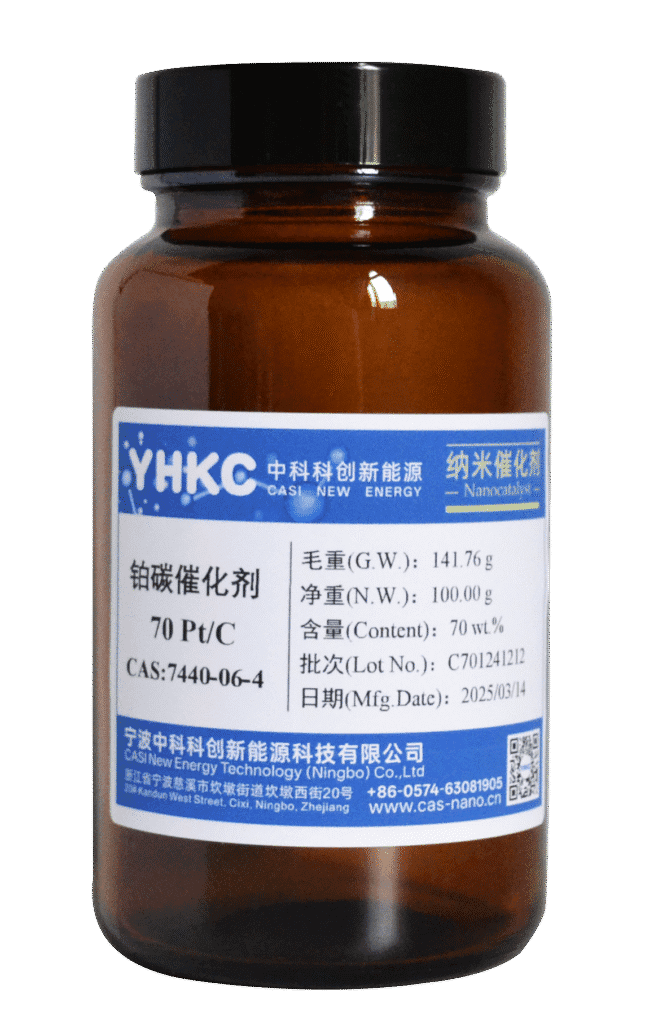

	HiCaP70	70wt.%Pt,30wt.%C	3.3	55	134	85
PtCo	HiCaPC50	50wt.%Pt,40wt.%C	5.2	65	350	110
Pt Black	HiCaP100	>95wt.%Pt	5.0	≥32	80	35
Ir-Black	HiCal100	>95wt.%lr	4.5	120	180	52
Ir02	HiCalO100	~80 wt.%lr	7.0	30	240	120
Low-lr Catalyst	HiCal070	~56wt.%lr	4.5	60	180	75
lr/C	HiCal20	20wt.%Ir,80wt.%C	2.5	180	600	500

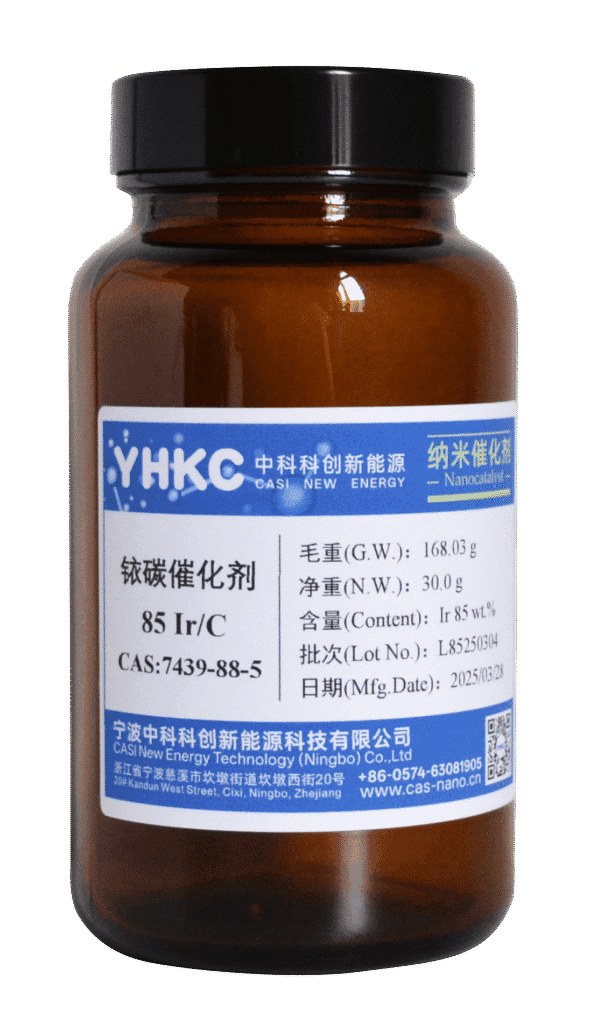

lr/C	HiCal85	85wt.%lr,15wt.%C	4.5	85	190	145
PtRu Black	HiCaPR100	65wt.%Pt,35wt.%Ru	3.2	30	190	40
PtRu/C	HiCaPR60	40wt.%Pt,20wt.%Ru,40wt.%C	4.0	85	1	100
Ru-Black	HiCaR100	>95wt.%Ru	7.0	40	200	80

Diagram:
